Display Device
  • LCD Mold Frame
  • TV Cabinet

LCD Mold Frame

Mold Frame is key part of BLU and since 1999, Samjin LND has provided TFT-LCD Mold Frame for TV, Monitor, Notebook PC ranging from small and middle size to large size LCD products, supported by its own original injection molding technology.
We have the largest Mold Frame manufacturing facilities in Korea and secure global competitiveness in cost saving through our own Hot Runner technology.

TV Mold Frame (LCD TV 32”~ 98” Back Light Unit)

Fix BLU unit and chassis and prevent any movement inside LCD panel or foreign materials contamination

Back Light Unit Structure
BLU ASS’Y

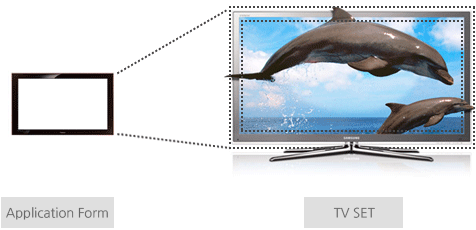

TV SET

Monitor Mold Frame (17’’~34” Back Light Unit)

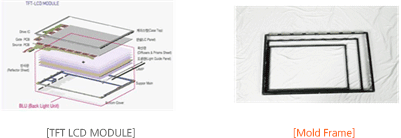

MODULE Structure
MONITOR SET

NOTE PC Mold Frame (12.1” ~ 18.4” Back Light Unit)

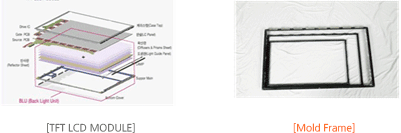

MODULE Structure
NOTE PC SET

TV Cabinet

TV Cabinet is the general term for all injection molding products for large size TV as LCD, PDP, CRT, Projection etc. and important part that determines the design and cosmetic quality of TV set. Cabinet product requires intensive manufacturing technology in order to realize diverse design tasks and functions requested by end customers.
Samjin LND’s development of the first double injection technology enabled various creative designs shown on Samsung Electronics LCD TV sets.

Double Injection TV Cabinet (LED, LCD TV 40”46”55”65”)

Double injection molding with transparent resin on RED WINE background
